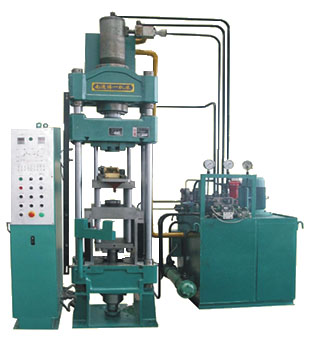

Product name ：YB79ZSeries automatic powder molding hydraulic machine Date(2008/1/3) Click:14049

Automatic powder described below :
    The economy is a series of hydraulic equipment powder molding products with manual feeding, suppressing floating down the stripping functions,PC to control their machines from suppression,repression itinerary

may, in accordance with technology need to be adjusted.and the completion of two-way pressure and delimitation process requirements.Mainframe machines used three frame of the structure is simple, work on,Process according to the specific requirements may increase the corresponding auxiliary facilities to accommodate the production of more complex parts.






Model parameters :
No.
Project
Efficient automatic powder molding hydraulic machine
Units
YG79Z
-40		 YG79Z
(K)-63 		YG79Z
(K)-100 		YG79Z
(K)-200 		YG79Z
(K)-315 		YG79Z
(K)-500		 YG79Z
(K)-630
1
Public renamed

KN 400 630 1000 2000 3150 5000 6300
2
Liquid maximum working pressure
MPa 25 25 25 25 25 25 25
3 Plane slider under the greatest distance to the work surface mm 1100 1100 1200 1500 1600 2000 2250
4 Slider operating parameters
The most pressing force

KN 400 630 1000 2000 3150 5000 6300
Return largest power
KN 180 400 315 450 630 1000 1250
The greatest journeys
mm 350 350 500 500 500 600 600
Rapid speed downlink
mm/s 240 220 120 100 100 100 100
Slow speed downlink
mm/s 20 25 15 12 12 10 6
Return rate   100 100 90 70 70 80 60
5 Top of the piston operating parameters
Top biggest effort


KN
 280 400 600/400 1000 1000 1500 1500
The biggest power grab
KN
 180 400 570/320 850 850 1400 1400
The greatest journeys
mm 150 160 200 250 300 350 350
Top speed up
mm/s 48 40 40 35 35 40 40
Return rate
mm/s 75 40 45 45 45 45 45
6 Pistons center fuel tank on the operating parameters
The largest extended power

KN
 30 60 60 80 80 80 80
The largest refund force
KN 10 35 35 50 50 50 50
The greatest journeys mm 50 50 50 50 50 50 50
7 Pistons center fuel tank under the operating parameters
The largest extended power

KN 30 60 60 80 80 80 85
The largest refund force
KN 10 35 35 50 50 50 50
The greatest journeys
mm 80 120 120 150 200 200 200
8 After the effective surface area of work L/R×B/A mm×mm 500×460 600×600 700×580
800×580 		900×900
800×800 		1120×1120
1200×800 		1320×1320
1200×800
9 Pistons center adjacent to the oil operation parameters
The largest extended power

KN 30 30 30 30 30 30 30
The largest refund force
KN 19 19 19 19 19 19 19
The greatest journeys
mm 60 60 60 80 80 100 100
10
Main Motor Power
KV 7.5 11 11 15/22 22/30 30 30
11 Feeder
Feeding area
L/R×B/A
 mm×mm 100×110 100×110 140×150 180×200 200×220 240×260 240×260
Trip
mm 200 200 250 300 300 350 350
12 Contour size machines L/R
mm 1800 3500 3000/3400 4200/400 4600/3400 5800/5000 5800/5100
B/A mm 2350 2500 1300/2000 1700/3000 2500/3800 2500/3800 2600/3800
High above the ground floor
mm 3200 3600 4000 4500 4800 5100 5600
Deep below ground
mm 0
300 300 1000 1000 1500 1860
