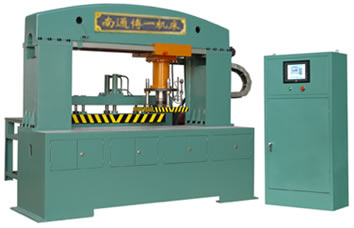

| Product name ：BY-XL50CNC cutting machine slices Date(2019/11/22) Click:14315 |
 Nantong try Machine Tool Company Ltd. (formerly the Far East forging machine tool plant in Nantong) production NC "Wheel of glass fiber mesh" Cutting slicing machine and various forging machine manufacturing company.become the largest exportvolume wheel mesh factory equipment supporting business.The companies have a multi-year commitment to glass fiber mesh wheel, footwear and other Process of engineering and technical personnel.combination of market demand, production of a wide range of uses CNC machine tools.
CNC cutting machine slices are described below :
1、The introduction of foreign advanced technology production machine, chips, cutting into a hundredfold increase efficiency;
2、PLC control system electrical use, reliability and stability.
3、LCD touch-screen display and menu interface, the man-machine dialogue;
4、AC servo control, product size and high precision, high-grade and quantity wheel mesh technology to meet production requirements.。
5、The use of aircraft piston rod IF quenching, after chrome plating; Hardness reach HRC55-0;
6、Stability 0.3MPa--0.5Mpa pressure.
|
No |
Subject Name |
Units |
Parameters |
| 1 |
Master cylinder stroke |
KN |
500 |
| 2 |
Liquid maximum working pressure |
Mpa |
25 |
| 3 |
Master cylinder greatest journeys |
Mm |
160 |
| 4 |
Feeding tank trip |
Mm |
415 |
| 5 |
Workstations effectively tops |
Mm |
1600 L/R X820 F/A |
| 6 |
Electrical power |
KW |
7.5 | |
|
|
| |
|
|
